ABTIN SANAT with efforts of Mr. sirous Nouri khanghah and his family is active for more than years in producing different kinds of anti corrosion pumps and filters.

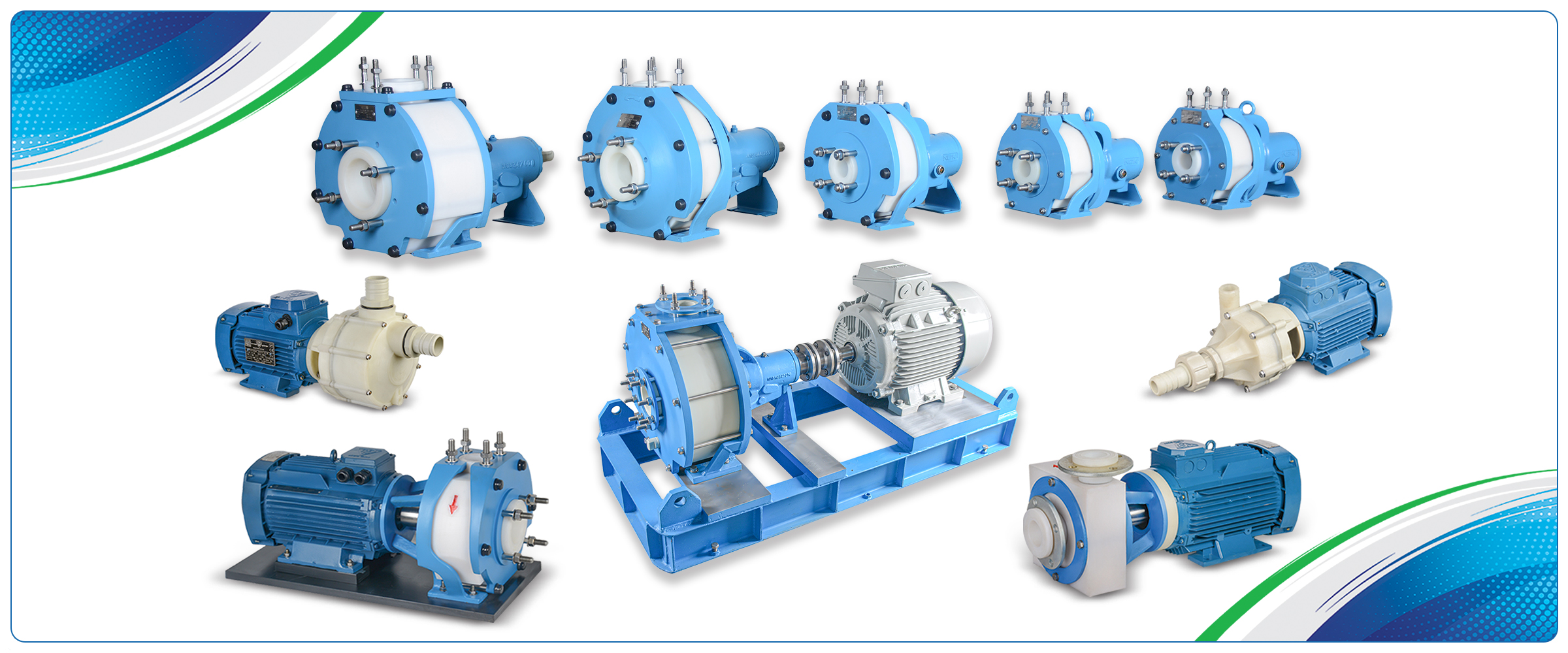

Pumps apply in two horizontal and vertical types in order to handling corrosive fluids using different polymer material such as PVDF, PTFE, PPGF, PP, PE-HD, PVC to address industrial applications where temperature ranges from -5 C to 120 C, flow up to 400 m3/h and head up to 100 meter.

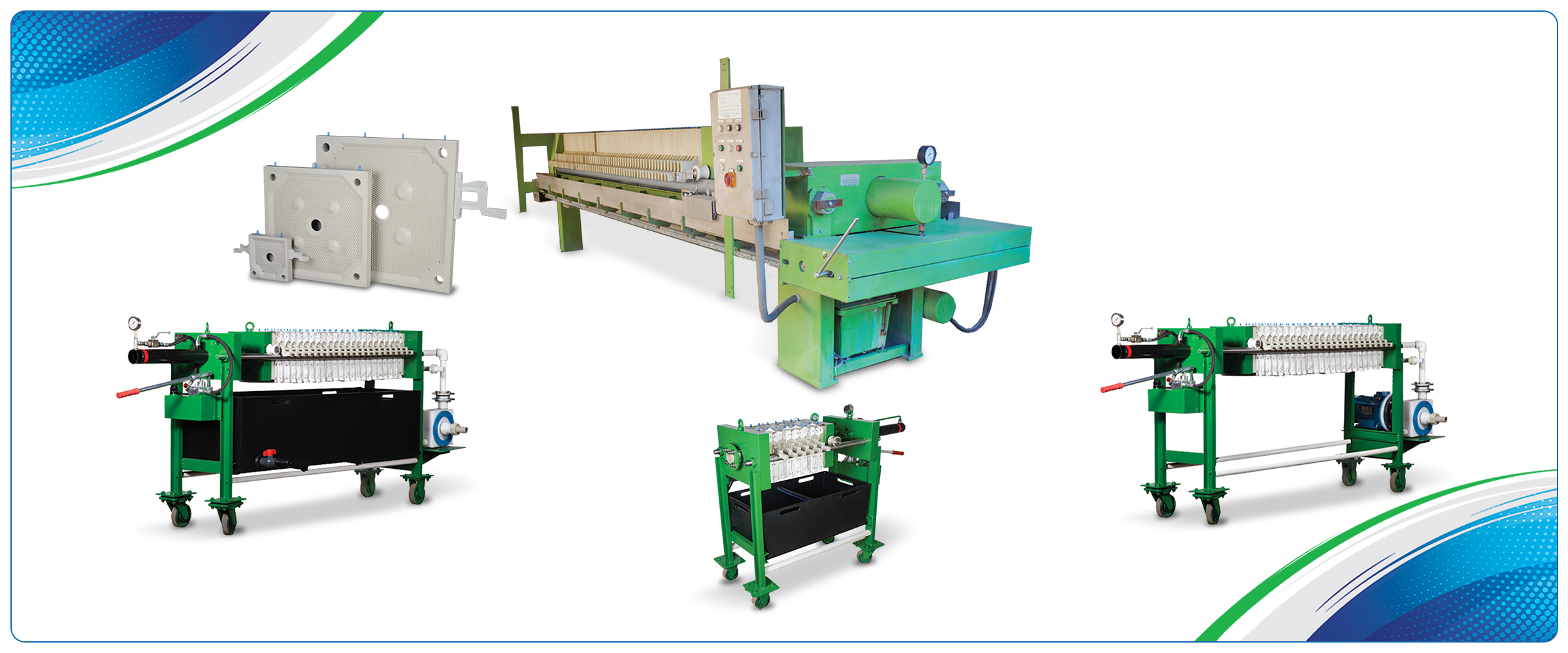

Filters are used in two different kinds of filter press and chamber filters in order to filterate suspended matters from liquid and gases.

products

Pomp Filter Other Products Consulting Services & technical support

AMP-M
AMP-MD
AMP-N
AMP-H
ANP
AMP-V
AMP-B

AMP-M

Model	dimension connection(suction)		dimension connection(give)
20-75	G 1”1/2	DN 20	G 1”	DN 20
25-100	G 1”1/2	DN 25	G 1”	DN 25
32-125	G 1”1/2 G 1”1/2	DN 32 DN 40	G 1”1/2 G 1”1/2	DN 25 DN 32

PDF File Download

AMP-MD

Model	dimension connection(suction)		dimension connection(give)
25-100	G 1”	DN 25	G 1”1/2	DN 25
32-12532-125	G 1”1/2	DN 25	G 1”1/2	DN 32
	G 1”1/2	DN 40	G 1”1/2	DN 32

PDF File Download

AMP-N

Model	dimension connection(suction)		dimension connection(give)
32-180	G 1”1/2	DN 32	G 1”1/2	DN 25
40-150	G 2”	DN 40	G 1”1/2	DN 32
40-180	G 2”1/2	DN 65	G 1”1/2	DN 40
50-150	G 3”	DN 65	G 2”	DN 50

PDF File Download

AMP-H

Model	dimension connection(suction)	dimension connection(give)	API 610 Standard
50-32-125	DN 50	DN 32
50-32-160	DN 50	DN 32
50-32-200	DN 50	DN 32
65-40-250	DN 65	DN 40
80-50-160	DN 80	DN 50
80-50-200	DN 80	DN 50
80-50-250	DN 80	DN 50
100-65-160	DN 100	DN 65
100-65-200	DN 100	DN 65
125-80-200	DN 125	DN 80

PDF File Download

ANP

Model	suction	give	API 610 Standard
50-32-160	DN 50	DN 32
50-32-200	DN 50	DN 32
65-40-250	DN 65	DN 40
80-50-160	DN 80	DN 50
80-50-200	DN 80	DN 50
80-50-250	DN 80	DN50
80-50-315	DN 80	DN 50
100-65-160	DN 100	DN 65
100-65-250	DN 100	DN 65
125-80-200	DN 125	DN 80
125-80-250	DN 125	DN 80

PDF File Download

Model	suction	give	API 610 Standard
125-80-315	DN 125	DN 80
125-80-400	DN 125	DN 80
125-100-200	DN 125	DN 100
125-100-315	DN 125	DN 100
150-125-250	DN 150	DN 125
150-125-400	DN 150	DN 125
200-150-315	DN 200	DN 150
200-150-400	DN 200	DN 150
250-200-315	DN 250	DN 200
250-200-400	DN 250	DN 200
300-300-500	DN 300	DN 300

PDF File Download

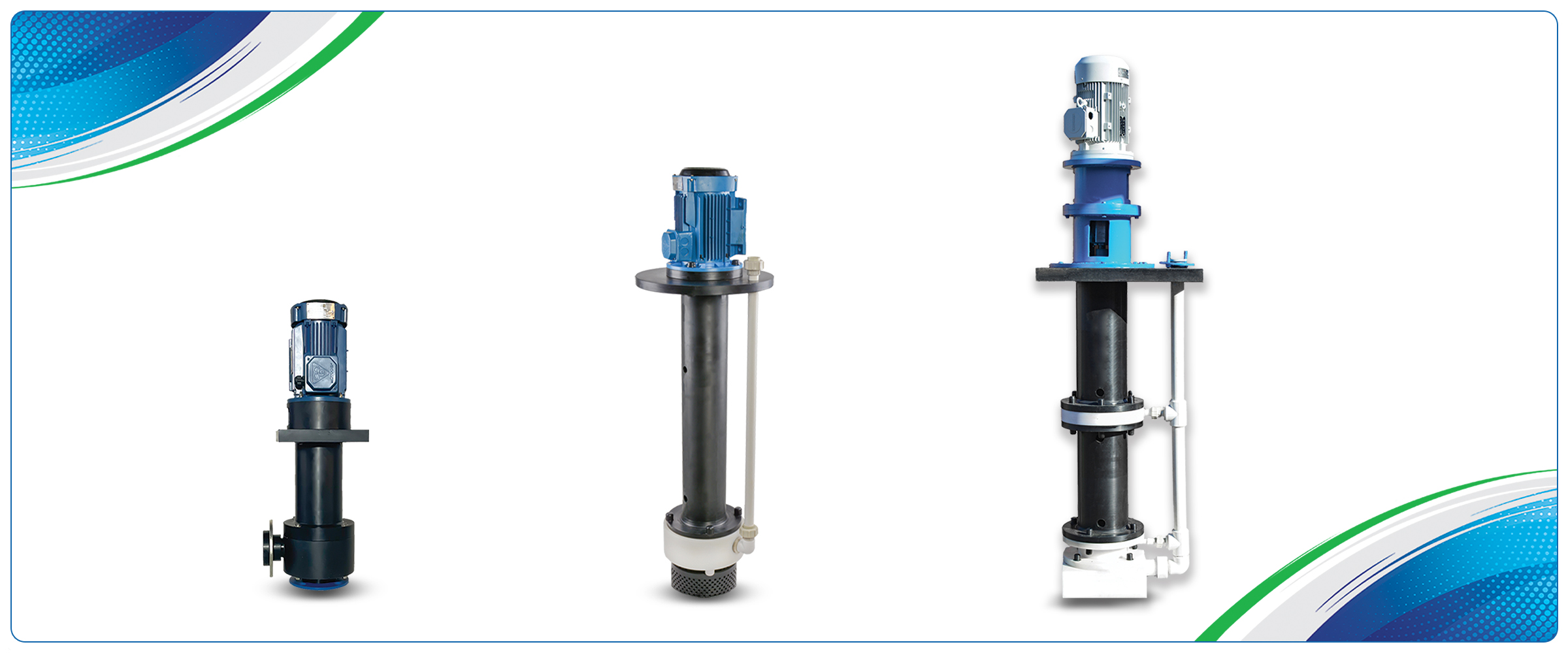

AMP-V

Model

32-125

32-180

40-150

40-180

50-150

PDF File Download

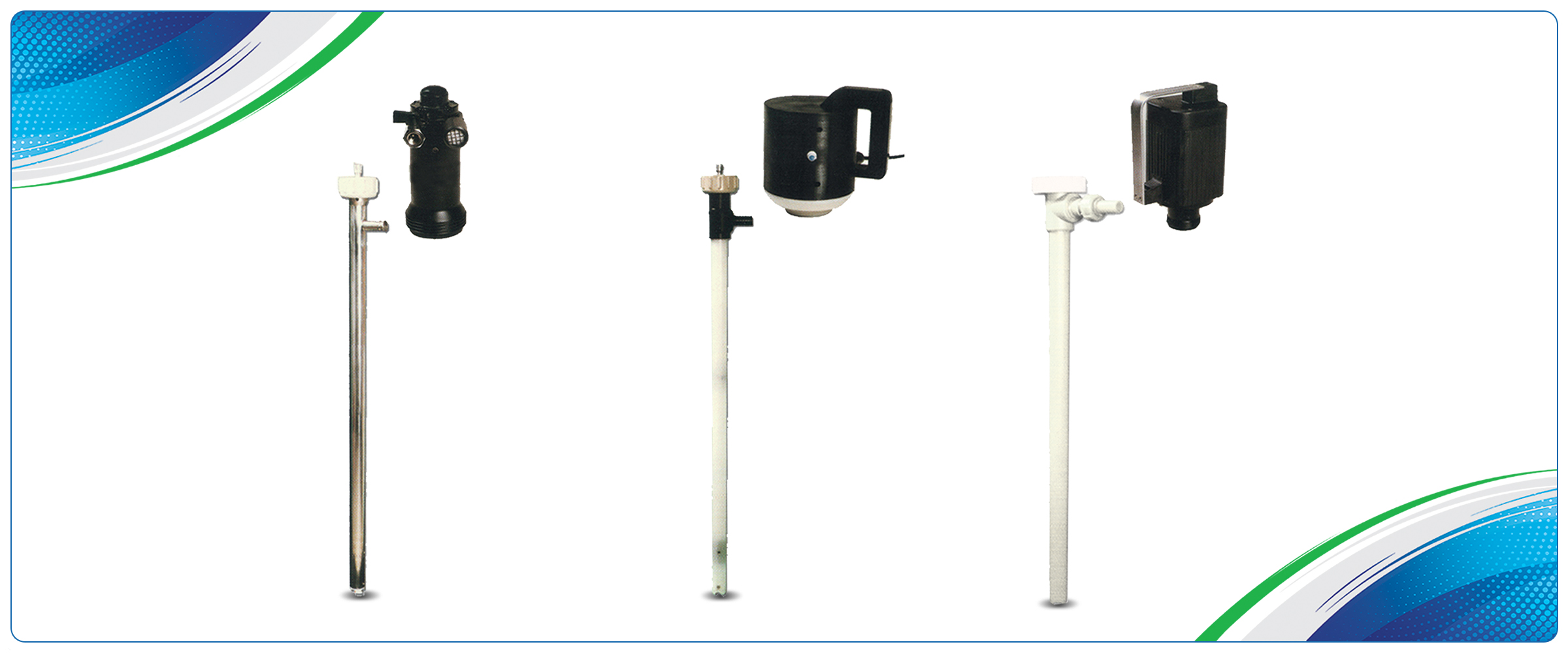

AMP-B

Model	pipe kind	pipe length mm	pipe diagonal mm
PP-50	PP	900	50
PF-40	PVDF	900	40
SS-40	AISI 316 SS	900	40

PDF File Download

AFP
AFC

AFP

Model

250

400

470

500

630

800

1000

1200

1500

PDF File Download

AFC

Model	filter discs	wound cartridge	filter bags	carbon cartridge
AFC-2
AFC-3
AFC-6

PDF File Download

AFM

ABTIN SANAT could produces fan to 2 m3/s capacity. The most important application of fan is suction of acid vapors and other hazardous gas created in production lines and processes such as plating. ABTIN SANAT produces industrial plastic fans including PE-HD,PPH ,PVC and other polymers based on customer order which have different heat tolerances based on type of plastic.

The lead time of fans according to product dimension is 3 to 5 weeks.
Scrubber

Scrubbrer is one of the other products of ABTIN SANAT company manufactured from engineering polymers like PE-HD or steel and is resistant againts acid, alkalines and prevent from spread of polluted gas through the environment. It is manufactured according to order of customer in different sizes and capacities.
Mixer

ABTIN SANAT is able to prepare resistantmixers in acid and alkali media with tolerance of 90 centigrade degree and supply to customers. Based on customer order, these mixers will be supplied in different heights and diameters together with gearbox.
AMP-S

مدل

6 liter

12 liter

25 liter

35 liter

50 liter

80 liter

1. Storage tank
2. Receiving tank
3. Priming chamber
4. Centrifugal pump
5. Suction pipe
6. Discharge pipe
7. Suction filter

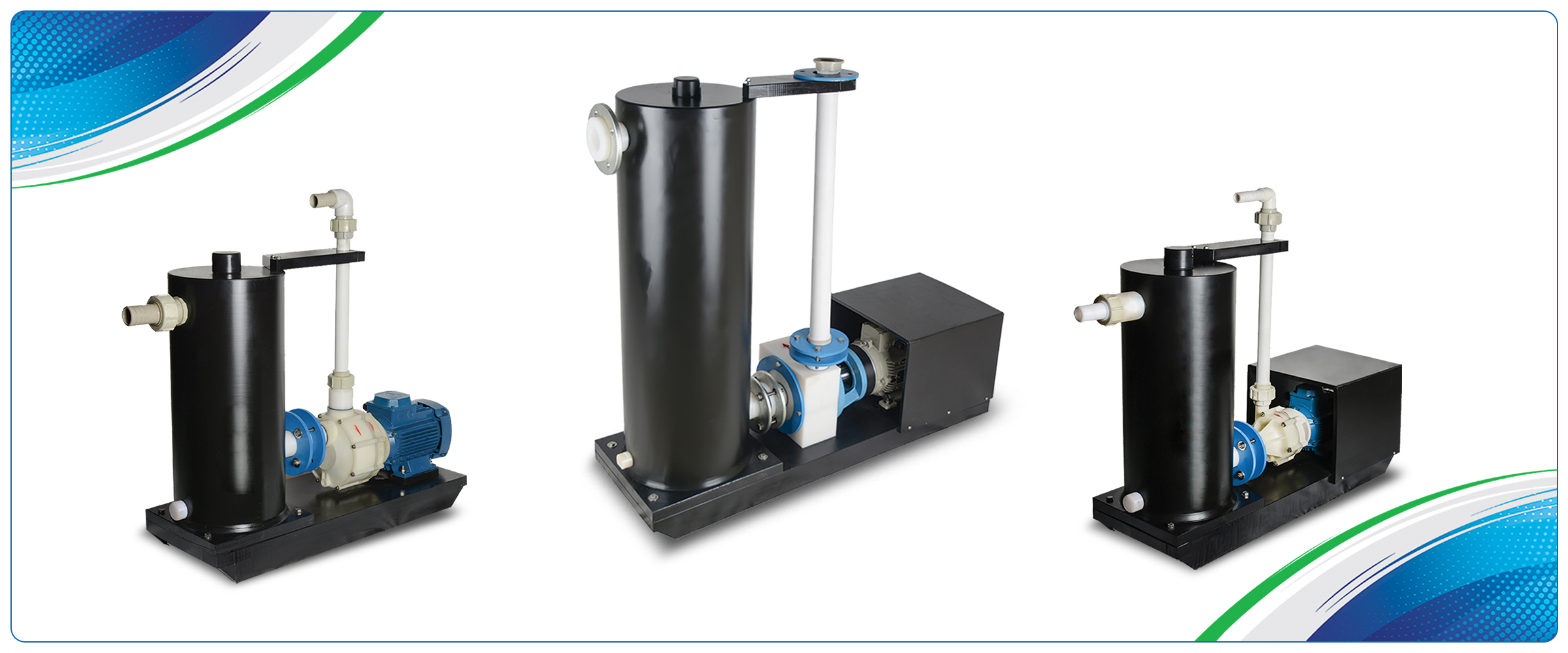

Self-Prime is a unit designed for unloading tanks which does not have discharge valve and also the wells and baths lower than level and located in suction opening. In Abtinsanat production line, the self-prime chamber are produced as standard types of 6-8 liters made of engineering plastic especially PE-HD (Polyethylene with high density) which based on customer order,manufacturing of self-primes with larger dimensions and longer diameter is possible.
Strainer

Strainer is a chamber which is located before suction opening of horizontal centrifugal pumps and prevents entrance of suspended matters to the pump will lead to un-balancing of impeller and damaging mechanical seal. It is advisable this product be installed in series with the pumps which are used in locations and sewages with stones and other particles. ABTIN SANAT produces this product in three different sizes of ASU-6,ASU-3,ASU-2 made of PE and PVDF. Material and size based on customer demand which face with different volumes and un-purifications is changeable. The filter inside strainers are in two types curtain and bin. The porosity of strainers varies from 2 to 5 mm diameter according to its application. The connecting method is in forms of welded ,flange and nut connection with different dimensions.

Eductor

(mm)	ابعاد / Dimension		اندازه
L	P	D	Size
96	81	40	3/8”
152	130	48	3/4”
202	176	53	1 1/2”
	Aplications: Electroplating, Metal finishing, Aluminium, ... - Reduce heat loss and save energy and money - Improve plating & Increase productivity with shorter process time - Improve cleaning action by direct impingement scrubbing - Prevent sludge settlement for easier removal and filtration times - Eliminate large tank “dead zones” - Increase anodising rate for more uniform coating

The proven alternative & effective method to agitate chemical process tanks

consulting services
Customized products
Commercial
Repair and maintenance services
Spare parts supply
Installation
Piping

consulting services

ABTIN SANAT offers consultancy with respect to the design and installation of systems and correct selection of product and chemical compatibility. In case of problems in regard to activity of company, we support you in the analysis and trouble shooting. Moreover, you can use our specialist training during utilization to increase product life cycle (PLC).
Remote consultancy: we can send you the information form of pump and filter by fax and as soon as you complete the required information, we will assist you.
ABTIN SANAT meeting: we would be pleased to have meeting with you at our company and discuss about your cases.
YOUR COMPANY meeting: ABTIN SANAT is ready to visit your site all over country and provide required guidelines.
Customized products
If our standard products offering does not fill our customers`s specific requiremens, ABTIN SANT production team can translate their specific process requiements to product characteristics. These modifications allow customers to exactly match their business process and requirements of quality management standard. changeable characteristics of products catagorize following:
- Chemical compatability
- Size, flow rate, discharge head
Commercial

Abtinsanat Company, based on commercial contracts ,is able to supply products, spare parts and accessories related to his products from well-known European manufacturers of Pumps and Filter for his customers.
Repair and maintenance services
All products of Abtinsanat include one year guarantee in standard operation conditions. Abtinsanat will extend the guarantee period after each repairment in direction of his strategy and will offers following services in case of customer demand:
- Failure Analysis
- suggestions of potential areas of improvements
- aid to develope preventive maintenance (PM) plan and audit the periodical check lists.

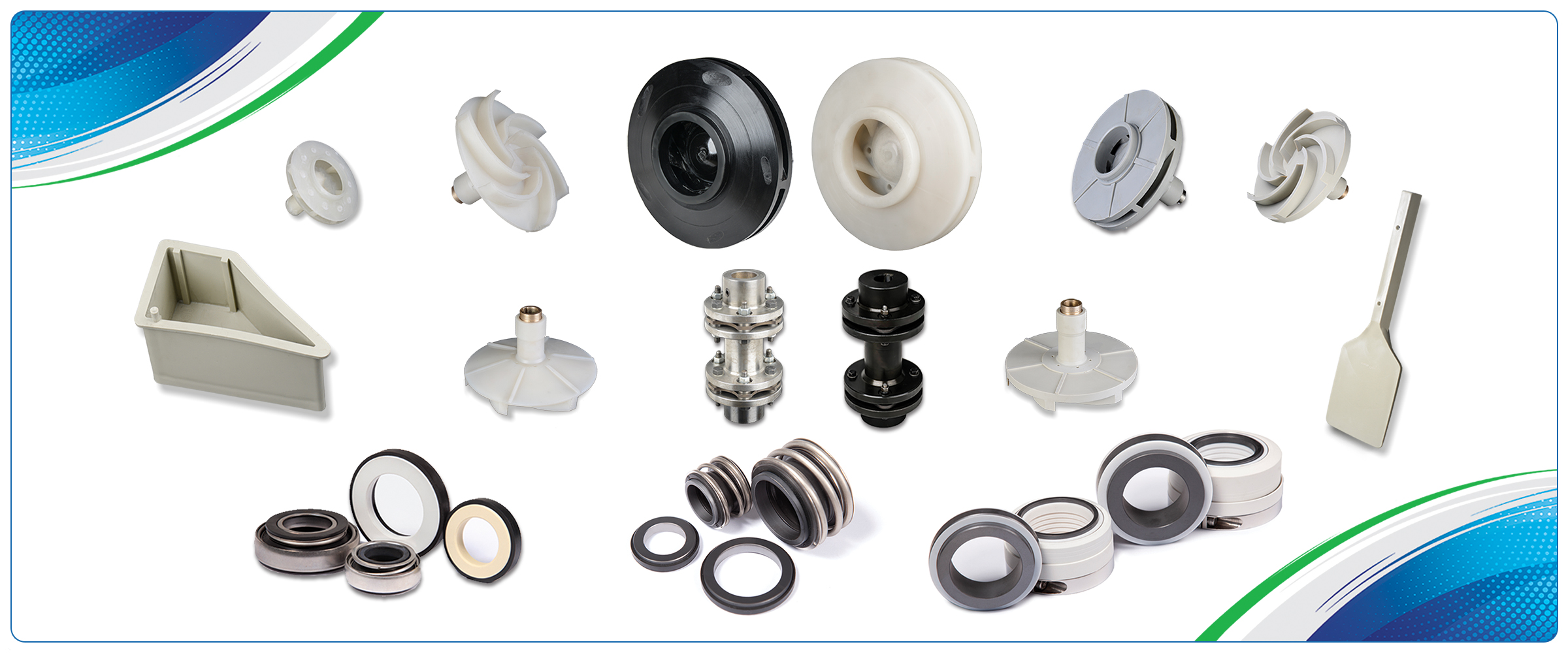

Spare parts supply

Abtinsanat Company supports customers in reliable maintenance activities with providing spare parts of his products and other brands.
Installation

The skilled staff of Abtinsanat ,upon preparation, can help you in installation the product. Our consultants are ready to answer your problems in relation with proper preparation prior to installation.
Piping
Respecting Abtinsanat activities in the field of anti-corrosion and anti-abrasion plastic products, we can assist you as follows in designing and installation the piping system:
- Selection of pipes and materials
- Installation methods
- Joining techniques

application & customers

pomp filter

chemical industry
petrochemical industry
water and air treatment and purification
pharmaceutical industry
food industry
textile industry
mechanical industry
paper industry

chemical industry

Chemical Industry: loading and unloading a wide range of chemical inside tank forms
Galvanizing: filling, emptying, circulation and regeneration of acid baths used for coating metals (sulphuric and hydrochloric acid, caustic soda, chlorides)
petrochemical industry

Petrochemical industry: handling of the most common organic and inorganic chemicals used as service fluids

Powerhouses and Renewable Energies :
water and air treatment and purification

Water and air treatment and purification: handling of reagents used in physicochemical purification plants. Regeneration of ion-exchange resins used to produce demineralised water. Fume scrubbing and odour-control towers (hydrochloric and sulphuric acid, iron chloride, hydrogen peroxide, sodium hypochlorite, caustic soda)
pharmaceutical industry

Pharmaceutical Industry: handling of chemicals such as acids, bases, alkelis, solvents ceutical processes
food industry

Food industry: unloading tankers and feeling chemicals used to disinfect production lines (nitric and hydrochloric acid, sodium hypochlorite, caustic soda)
textile industry

Textile industry: filling, draining and circulation of chemicals used during finishing operations such as bleaching, mercerizing, and dyeing (hydrochloric acid, sodium hypochlorite, caustic soda, special coloring agents)
Tanning industry: handling of chemicals most commonly used in the various stages of the tanning process (acetic, sulphuric and hydrochloric acid, caustic soda, copper sulphate solutions)
mechanical industry

Mechanical industry: handling, circulation and Distribution of fluids for production lines
paper industry
Paper Industry: filling, filling, draining and circulation of chemicals used during paper bleaching (hydrochloric and acetic acid, aluminum sulphate, sodium hypochlorite, caustic soda)

environmental technology
service and potable water treatment
mining industry
metallurgy industry
chemical industry
food industry
pharmaceutical industry

environmental technology

Environmental technology: industrial waste water slurries from: electroplating, tanneries, pickling plants, stone processing, automobile industry, iron and steel industry, textile industry, pulp and paper industry, glass industry, electrical industry, soil decontamination, flue gas desulphurization and dust scrubbing
service and potable water treatment

Service and potable water treatment: slurries from the treatment of ground water, surface water and river water
mining industry

Mining industry: clays, kaolin, ceramic, porcelain, cement, ores, flotation slurries, coal
metallurgy industry

Metallurgy industry: wet-chemical preparation of: titanium, copper, lead, tin, nickel, zinc, silver, gold
chemical industry

Chemical industry: coloring pigments, acids (phosphoric acid, hydrochloric acid, amino acid, silicic acid), titanium dioxide, silicates, caustic solutions, solvents, fillers, calcium carbonate, glycerin
food industry

Food industry: yeast, beet sugar, cane sugar, starch, rice flour, tapioca (manioc), seasoning, vegetable oils and fats (palm oil, rice bran oil, sunflower oil, etc), animal oils and fats (fish oil, milk fat), seaweed, soya sauce, gelatin
pharmaceutical industry
Pharmaceutical industry: blood plasma, enzymes

agency

Acknowledgements & Certificates

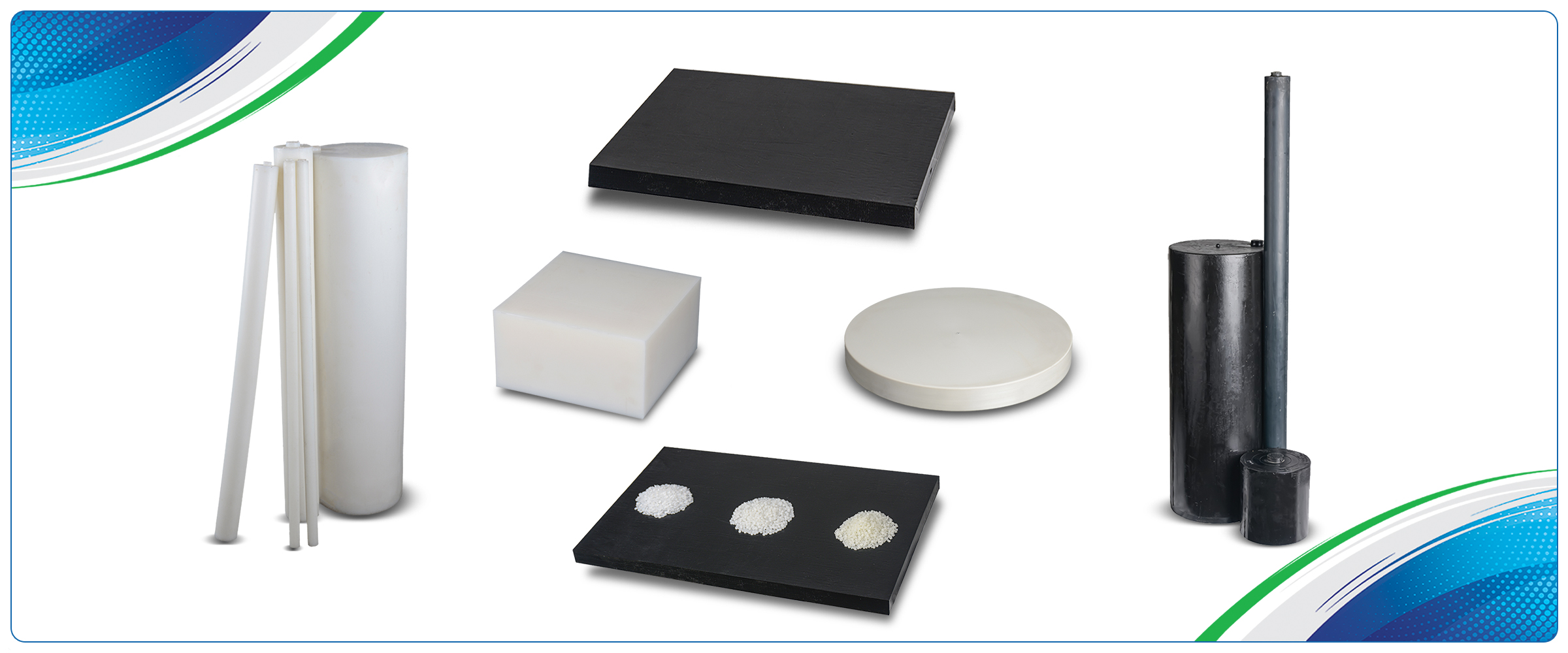

articles

High-density polyethylene
Polypropylene
Polyvinylidene fluoride
Ethylene-chlorotrifluoroethylene

High-density polyethylene

High-density polyethylene

PE-HD

Alongside its outstanding processability, PE-HD displays high chemical resistance and offers strength and rigidity within a temperature range of between -50 C and +80 C. Since PE is reusable, it has been approved in respect of environmental standards. It is resistance to hydrous solution of acids, alkalis and salts as well as to a large number of organic solvents. It is unsuitable for concentrated oxidising acids.
- very low water absorption
- low steam permeability
- food safe
Polypropylene

Polypropylene

PP , PP-GF

Compared to PE, polypropylene offers increased stiffness, especially in the upper temperature range (up to +100 C). Among its key characteristics are high chemical resistance and favourable results in long-term testing when exposed to various media, even at high temperatures. Chemical resistance similar to that of PE but suitable for higher temperatures. PP is normally flexible wich allows it to be used as as engineering plastic. PP is semi-transparent.
- low weight
- high tensile strenght, high surface strenght
- high heat resistance
- low oxidation resistance
- low abrasion resistance
- brittle in coldness
Polyvinylidene fluoride

Polyvinylidene fluoride

PVDF

PVDF is a partially fluorinated high-performance plastic that can be deployed at temperatures ranging from -30 C to +140 C. It is resistance to the majority of organic and inorganic media, acids, solutions of salts, aliphatic, aromatic and chlorinated hydrocarbons, alcohols and halogens. Conditionally suitable for ketones, esters, ethers, organic bases and alkaline solutions.
- High tensile strenght
- High mechanical strenght
- Very low water absorption
- High UV-resistance
- Relatively high coefficient of thermal expansion
- Toxic fumes when burned
Ethylene-chlorotrifluoroethylene

Ethylene-chlorotrifluoroethylene

E-CTFE

As a partially fluorinated high-performance plastic, E-CTFE offers a broad temperature range from -40 C to +150 C. In addition, E-CTFE displays an extremely high level of chemical resistance, wich includes the alkaline range.
- good insulation properties
- very good weather resistance
- high resistance to radiation
- non-consistent againts hot amines
